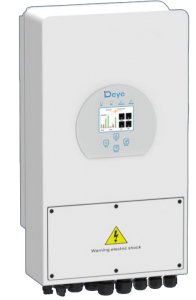

OUR 3600VA HYBRID INVERTER
Here is 3600VA Hybrid inverter specification. You can request more info. from [email protected]
SUN-3.6K -SG03LP1-EU
Ideal for powering TVs, decoders, computer equipment and appliances that consume more energy such as fridges, microwaves, washing machines, dishwashers, kettles and toasters.
MAX DC Input Power: 4680W
Rated PV Input Voltage (V): 370 (125~500)
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Full Load DC Voltage Range (V): 300-425
PV Input Current (A): 13+13
Max. PV ISC (A): 17+17
Number of MPPT / Strings per MPPT: 2/1+1
Rated AC Output or UPS Power (W): 3600
Max. AC Output Power (W): 3690
AC Output Rated Current (A): 16.4
Max. AC Current (A): 18
Max. Continuous AC Passthrough (A): 35
Peak Power (on grid): 2 time of rated power, 10 S
Power Factor: 0.8 leading to 0.8 lagging
Output Frequency and Voltage: 50/60Hz; L/N/PE 220/230Vac (single phase)
Grid Type: Single Phase
DC injection current (mA): THD<3% (Linear load<1.5%)
Battery Voltage Range (V): 40~60V
Max. Charging Current (A): 90
Max. Discharging Current (A): 90
Number of battery input: YES
Charging Curve: 3 Stages / Equalization
Charging strategy for lithium-ion battery: Self-adaption to BMS
Max. Efficiency: 97.6%
Euro Efficiency: 96.5%
MPPT Efficiency: >99%
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Surge protection
Grid Regulation: EN50549,AS4777.2,VDE0126,IEC61727,VDEN4105,G99,NBT32004,CEI0-21，
NRS097,NBR16149/16150,RD1699
Safety EMC / Standard: IEC62109-1/-2, EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4
Operating Temperature Range (℃): -45~60℃, >46℃ derating
Cooling: Natural cooling
Noise (dB): <30 dB
Communication with BMS: RS485; CAN
Weight (kg): 20.5
Size (mm): 330W x 580H x232D
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 years
